드릴파이프 (롯트, 드릴칼라) 사양
| Connection for top |
Connection for bottom |
Outside diameter (mm) |
Length (mm) |
Weight (kg) |
Weight (lb) |
| Hex 120H male |
Hex 120H female |
356 |
2000 |
|
|
| Hex 190 male |
Hex 190 female |
508 |
6000 |
1484 |
3272 |
| API 6 5/8" Reg. female |
API 6 5/8" Reg. female |
303 |
8000 |
|
|

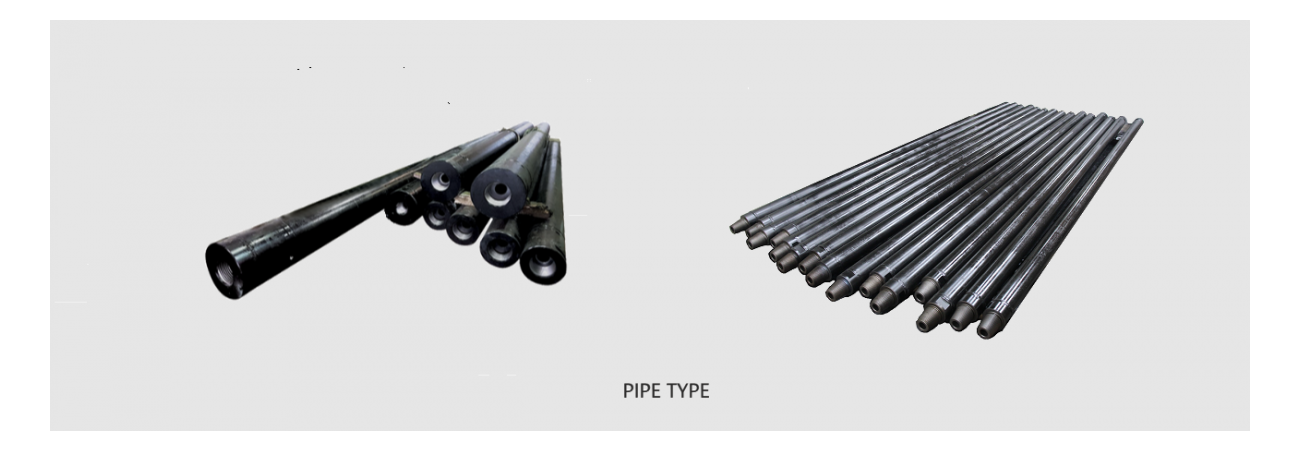

PIPE TYPE SPECIFICATION
| TOP CONNECTION |
BOTTOM CONNECTION |
PIPE OD (MM) |
| API 3 1/2" REG. PIN |
API 3 1/2" REG. BOX |
114 |
| HEX 190 PIN |
HEX 190 BOX |
508 |
| HEX 240H PIN |
HEX 240H BOX |
609.6 |

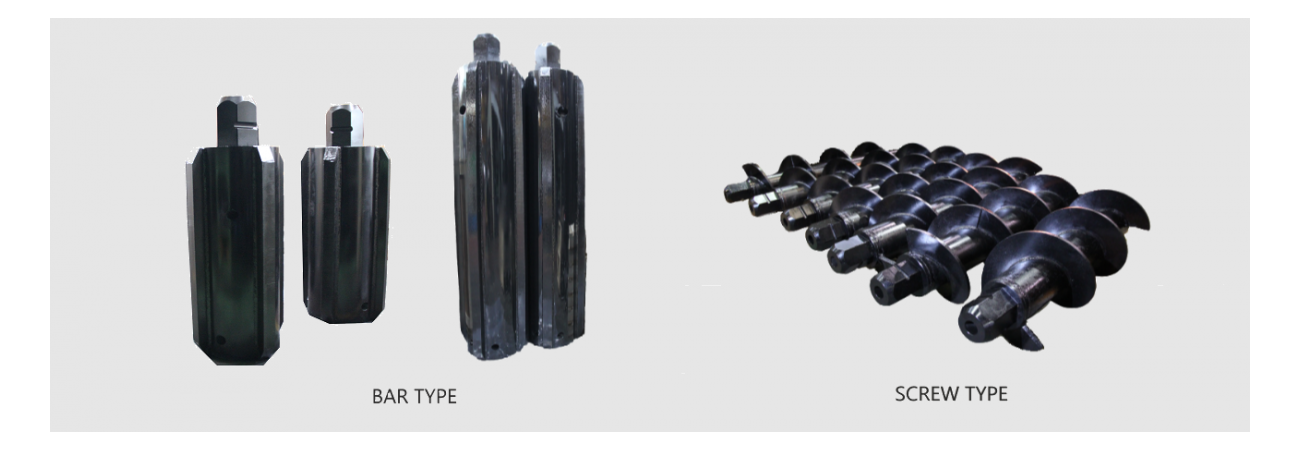

BAR TYPE SPECIFICATION
| TOP CONNECTION |
BOTTOM CONNECTION |
PIPE OD (MM) |
BAR OD (MM) |
| T4 PIN |
T4 BOX |
267.4 |
380 |
| HEX 120H PIN |
HEX 120H BOX |
406.4 |
525 |
SCREW TYPE SPECIFICATION
| TOP CONNECTION |
BOTTOM CONNECTION |
PIPE OD (MM) |
SCREW OD (MM) |
| HEX 60H PIN |
HEX 60H BOX |
267.4 |
430 |
*Other size of Drill Pipe is available upon customer’s request
