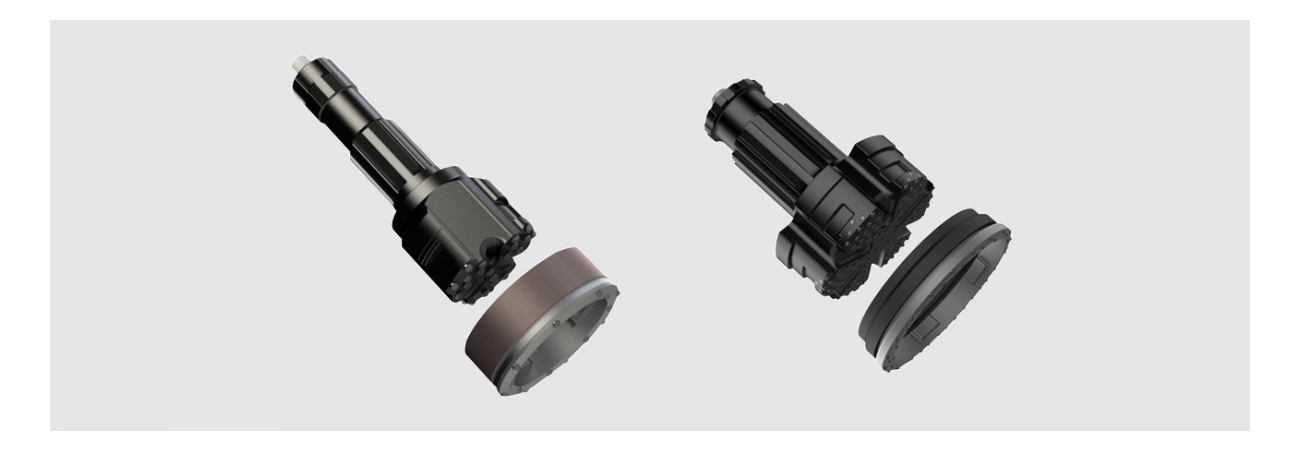

Model (shoulder type) | Casing Size | Ring bit Diameter | Applicable Hammer | ||||||
OD | ID | T | OD | ID | T | OD | OD | ||
MM | INCH | MM | INCH | ||||||
TDN190 | 219.0 | 209.0 | 5.0 | 8.622 | 8.228 | 0.197 | 229 | 9.02 | TG60 |
TDN215 | 244.6 | 220.6 | 12.0 | 9.630 | 8.685 | 0.472 | 255 | 10.04 | TG80 |
TDN560 | 609.6 | 584.2 | 12.7 | 24.000 | 23.000 | 0.500 | 630 | 24.80 | TG450 |
TDN630 | 683.0 | 658.0 | 12.5 | 26.890 | 25.906 | 0.492 | 711 | 27.99 | TG550 |
TDN760 | 813.0 | 763.0 | 25.0 | 32.008 | 30.039 | 0.984 | 856 | 33.70 | TG550 |
TDN1160 | 1219.2 | 1168.4 | 25.4 | 48.000 | 46.000 | 1.000 | 1239 | 48.79 | TG800 |
*Other size of TDN system is available upon customer's request
