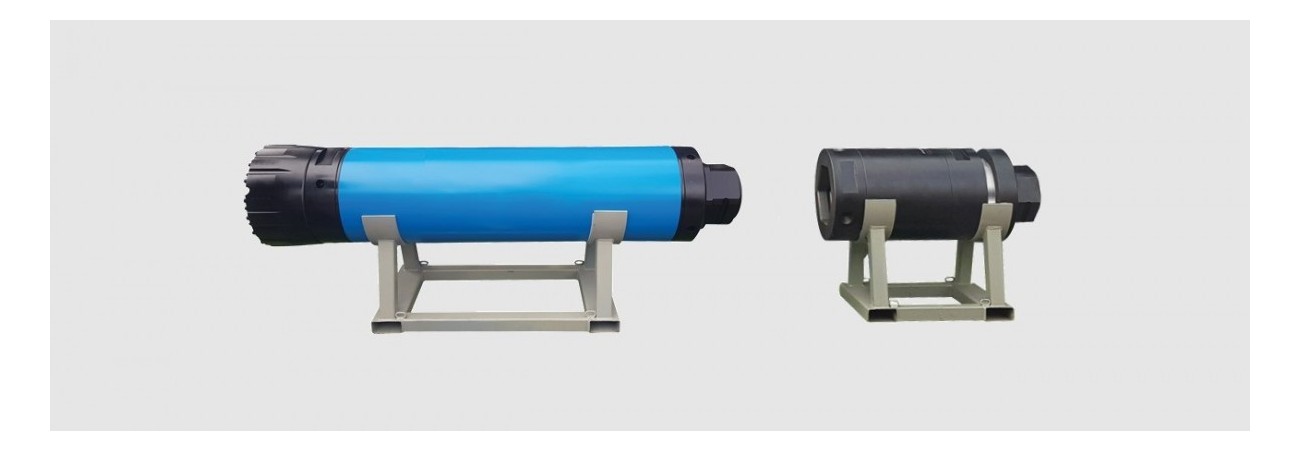

TRC 함마
TRC 함마
TRC 함마
TRC 함마 사양
| model | TRC50 | TRC80 | TRC120 | |||
|---|---|---|---|---|---|---|
| Connection | 4" / 4.5" Metzke, 4.5" Remet | Hex Joint | Hex Joint | |||
| Bit Shank | RC50 | RC80 | RC120 | |||
| General Specifications | Metric | Imperial | Metric | Imperial | Metric | Imperial |
| Recommended bit diameter | 133 - 146 | 5 1/4 - 5 3/4 | 204 - 260 | 8 1/5 - 10 5/8 | 300 - 426 | 11 4/5 - 16 7/9 |
| Outside Diameter | 121 | 4.76 | 194 | 7.64 | 286 | 11.26 |
| Length w/o connection & bit | 1078.5 | 42.46 | 1182.0 | 46.5 | 1625.0 | 64.0 |
| Weight w/o bit | 62.0 | 136.7 | 203.0 | 447.6 | 523.6 | 1154.5 |
| Backhead across flats (mm) | 30 X 116 AF | 50 X 160 AF | 40 X 260 AF | |||
| Air Consumption | ||||||
| 6.9 BAR / 100 PSI (m³/min & cfm) | ||||||
| 10.3 BAR / 150 PSI (m³/min & cfm) | 7.9 | 280 | 13.0 | 460 | 20.4 | 720 |
| 13.8 BAR / 200 PSI (m³/min & cfm) | 11.3 | 400 | 18.1 | 640 | 28.3 | 1000 |
| 17.2 BAR / 250 PSI (m³/min & cfm) | 15.3 | 540 | 23.8 | 840 | 39.6 | 1400 |
| 24.1 BAR / 350 PSI (m³/min & cfm) | 22.6 | 800 | 34.0 | 1200 | ||
* Other size of TRC Hammer is available upon customer’s request
