확공 비트

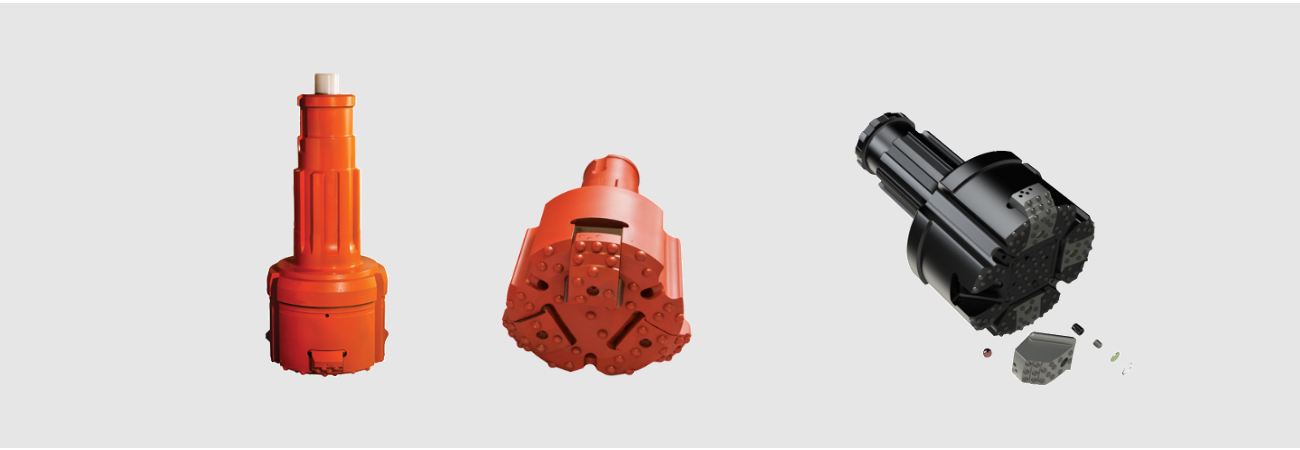

TREX 비트

TREX 비트

TREX 비트 사양

Model Casing Size Bit Diameter No. of Wings Applicable Hammer
OD ID T OD ID T Exp Ret Exp Ret
MM INCH MM INCH
TREX90 114.3 101.6 6.4 4.500 4.000 0.252 127 90 5.00 3.54 2 TG35
TREX115 139.8 125.0 7.4 5.504 4.921 0.291 154 113 6.06 4.45 2 TG40
TREX130 152.4 132.4 10.0 6.000 5.213 0.394 164 122 6.47 4.80 2 TG40
TREX140 168.0 156.0 6.0 6.614 6.142 0.236 184 140 7.24 5.51 2 TG50
TREX150 177.8 167.0 5.4 7.000 6.575 0.213 197 153 7.76 6.02 2 TG50/TG60
TREX165 193.7 179.7 7.0 7.626 7.075 0.276 212 165 8.35 6.50 2 TG60
TREX190 219.0 203.0 8.0 8.622 7.992 0.315 238 187 9.37 7.36 3 TG60/TG80
TREX215 245.0 226.0 9.5 9.646 8.898 0.374 264 213 10.39 8.39 3 TG80
TREX240 273.0 254.0 9.5 10.748 10.000 0.374 290 240 11.42 9.45 3 TG80
TREX250 299.0 279.0 10.0 11.772 10.984 0.394 316 255 12.44 10.04 3 TG80
TREX280 324.0 299.0 12.5 12.756 11.772 0.492 340 276 13.39 10.87 3 TG100
TREX315 355.6 336.6 9.5 14.000 13.252 0.374 373 315 14.69 12.40 3 TG100/TG120
TREX365 406.0 374.0 16.0 15.984 14.724 0.630 420 351 16.54 13.82 3 TG120/TG125
TREX410 457.2 435.0 11.1 18.000 17.126 0.437 478 412 18.82 16.22 3 TG320
TREX460 508.0 482.6 12.7 20.000 19.000 0.500 530 455 20.87 17.91 4 TG370
TREX510 558.8 533.4 12.7 22.000 21.000 0.500 578 499 22.76 19.65 4 TG450
TREX560 609.6 584.2 12.7 24.000 23.000 0.500 632 556 24.88 21.89 4 TG450
TREX610 660.4 635.0 12.7 26.000 25.000 0.500 682 605 26.85 23.82 4 TG550
TREX660 711.2 685.8 12.7 28.000 27.000 0.500 733 656 28.86 25.83 4 TG550
TREX710 762.0 736.6 12.7 30.000 29.000 0.500 784 704 30.87 27.72 4 TG550
TREX760 813.0 773.0 20.0 32.008 30.433 0.787 833 738 32.80 29.06 4 TG550
TREX810 863.6 838.2 12.7 34.000 33.000 0.500 886 809 34.88 31.85 4 TG640
TREX860 914.4 889.0 12.7 36.000 35.000 0.500 938 831 36.93 32.72 4 TG640
TREX960 1020.0 996.0 12.0 40.157 39.213 0.472 1046 955 41.18 37.60 4 TG800

*Other size of TREX system is available upon customer's request
