비트

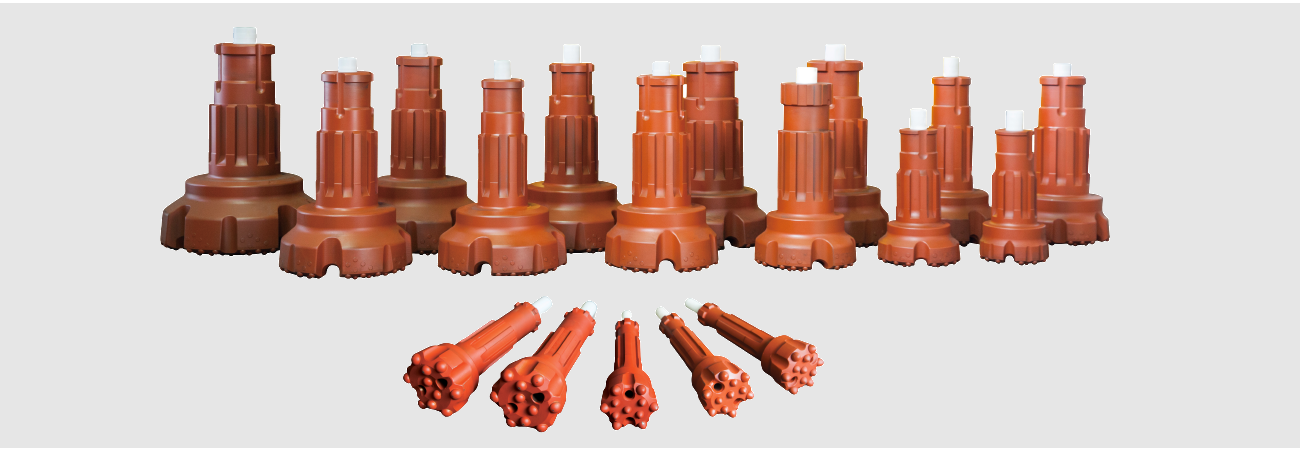

일반 비트

일반 비트

일반 비트 사양

DTH Hammer Bit Diameter Shank
MM INCH
ACE10 55 ~ 66 2 1/6 ~ 2 3/5 DOM10
ACE20L 66 ~ 76 2 3/5 ~ 3 DHD065
ACE20 70 ~ 80 2 3/4 ~ 3 1/7 MACH20
ACE30 87 ~ 105 3 3/7 ~ 4 1/7 DHD3.5
TG35 93 ~ 105 3 2/3 ~ 4 1/7 DHD3.5
TG40, TGX40 105 ~ 127 4 1/7 ~ 5 DHD340
TG50, TGX50 130 ~ 152 5 1/8 ~ 6 QL50
TG60, TGX60, TGR60 152 ~ 194 6 ~ 7 2/3 QL60
TG70, TG80, TGX80, TGR80 190 ~ 270 7 1/2 ~ 10 5/8 SD8
TG90 219 ~ 290 8 5/8 ~ 11 3/7 TD90
TG100L, TG100N, TGX100 251 ~ 305 9 7/8 ~ 12 SD10
TG120L, TG120N 300 ~ 445 11 4/5 ~ 17 1/2 SD12
TG125 311 ~ 460 12 1/4 ~ 18 1/9 N125
TG320N, TG320S, TGX320 355 ~ 525 14 ~ 20 2/3 TG320
TG370N, TG370S 445 ~ 575 17 1/2 ~ 22 2/3 TG370
TG450N, TG450S 460 ~ 660 18 1/9 ~ 26 TG450
TG550N, TG550S 610 ~ 850 24 ~ 33 1/2 TG550
TG640S 710 ~ 975 28 ~ 38 2/5 TG640
TG800 900 ~ 1250 35 3/7 ~ 49 1/5 TG800
TG900 1020 ~ 1450 40 1/6 ~ 57 TG900

*Other size of DTH Bit is available upon customer's request

*Standard Gauge button diameter
- 14mm (5/9 in) : larger than 121mm (4 3/4 in) bit diameter
- 16mm (5/8 in) : larger than 140mm (5 1/2 in) bit diameter
- 19mm (3/4 in) : larger than 210mm (8 1/4 in) bit diameter
- 20mm (4/5 in) : larger than 445mm (17 1/2 in) bit diameter
