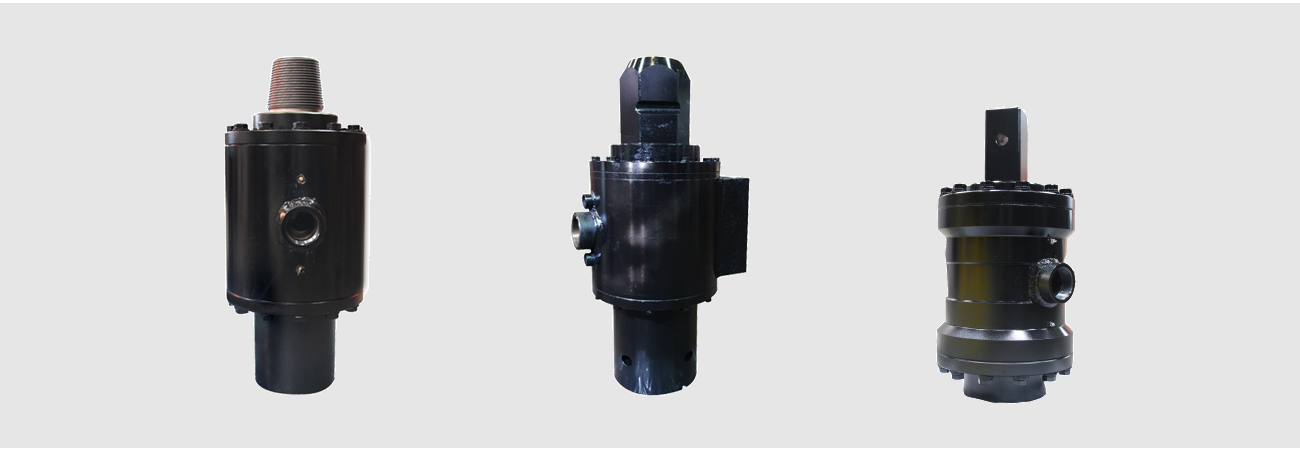

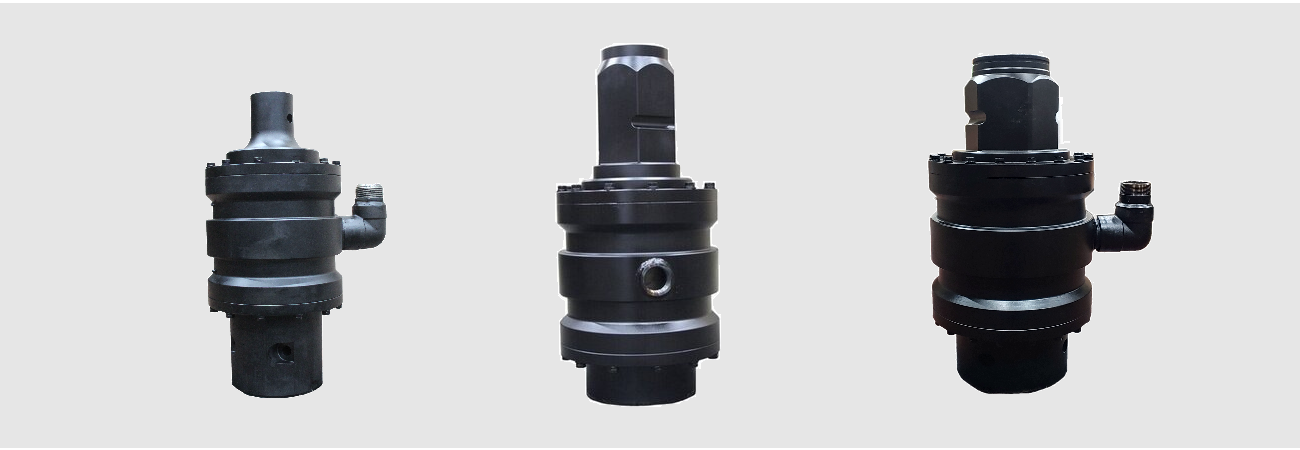

AIR SWIVELS
AIR SWIVELS
air swivels
AIR SWIVELS Specification
| Connection for top | Connection for bottom | Outside diameter (mm) | Length (mm) | Weight (kg) | Weight (lb) |
| 2 3/8" API Reg. male | 2 3/8" API Reg. female | 233 | 443 | 105 | 232 |
| 75mm square pin | 4 1/2" API Reg. female | 278 | 432 | 134 | 295 |
| 6 5/8" API Reg. male | 6 5/8" API Reg. female | 308 | 524 | 215 | 474 |
| 3" HEX box | T4 box | 405 | 871 | 420 | 926 |
| 130 square box | 240H box | 465 | 929 | 590 | 1301 |
| HEX300 pin | HEX300 box | 575 | 900 | 790 | 1742 |

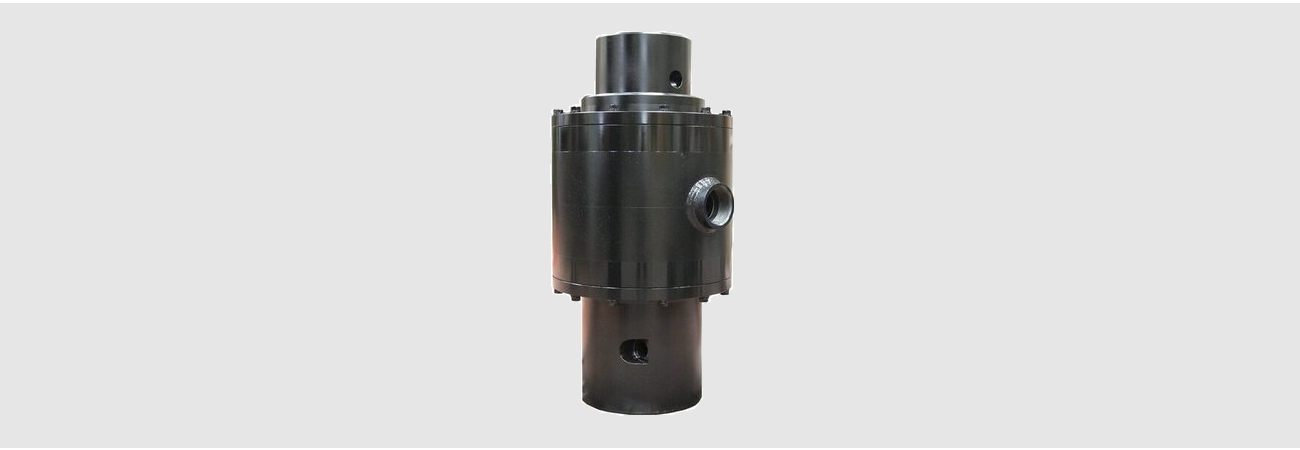

RC Air Swivels
| Connection for top | Connection for bottom | Outside diameter (mm) | Length (mm) | Weight (kg) | Weight (lb) |
| API 4 1/2" Reg. male | HEX145 female | 320 | 555 | 185 | 408 |
*Other size of Air Swivel (RC) is available upon customer’s request.
