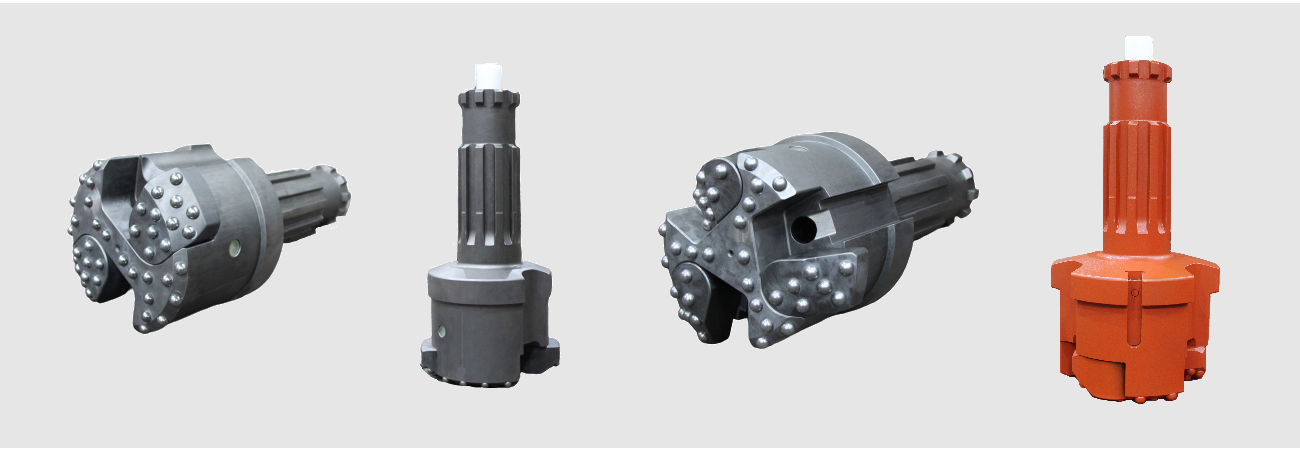

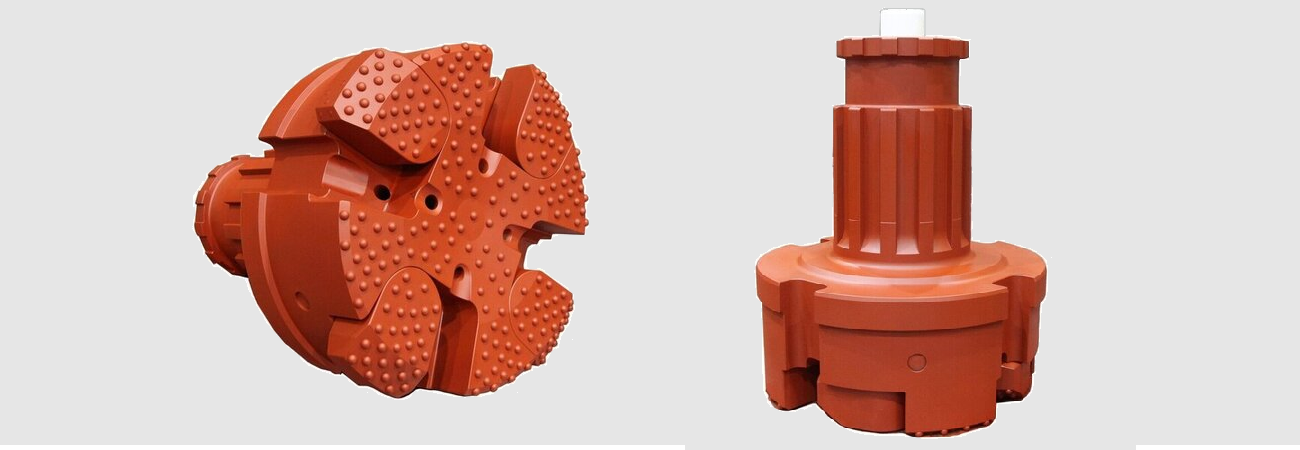

TRB overburden drilling systems are designed for economic cost of drilling in simultaneous casing advancement.
The wings are retracted by reverse rotation.
TRB SYSTEMS Specification
| Model | Casing Size | Bit Diameter | No. of Wings | Applicable Hammer | ||||||||
| OD | ID | T | OD | ID | T | Exp | Ret | Exp | Ret | |||
| MM | INCH | MM | INCH | |||||||||
| TRB90 | 114.3 | 102.8 | 5.8 | 4.50 | 4.05 | 0.23 | 126.3 | 90.8 | 4.97 | 3.57 | 2 | TG35 |
| TRB115 | 140.0 | 126.5 | 6.8 | 5.51 | 4.98 | 0.27 | 152.0 | 111.5 | 5.98 | 4.39 | 2 | TG40 |
| TRB130 | 152.0 | 132.0 | 10.0 | 5.98 | 5.20 | 0.39 | 164.0 | 115.0 | 6.46 | 4.53 | 2 | TG40 |
| TRB140 | 168.0 | 150.0 | 9.0 | 6.61 | 5.91 | 0.35 | 182.0 | 133.0 | 7.17 | 5.24 | 2 | TG50 |
| TRB150 | 178.0 | 158.0 | 10.0 | 7.01 | 6.22 | 0.39 | 192.0 | 141.0 | 7.56 | 5.55 | 2 | TG50/TG60 |
| TRB165 | 194.0 | 178.0 | 8.0 | 7.64 | 7.01 | 0.31 | 210.0 | 159.0 | 8.27 | 6.26 | 2 | TG60 |
| TRB190 | 219.1 | 213.1 | 3.0 | 8.63 | 8.39 | 0.12 | 236.1 | 189.0 | 9.29 | 7.44 | 2 | TG60 |
| TRB215 | 244.5 | 219.1 | 12.7 | 9.63 | 8.63 | 0.50 | 256.0 | 200.1 | 10.08 | 7.87 | 2 | TG80 |
| TRB240 | 273.0 | 253.0 | 10.0 | 10.75 | 9.96 | 0.39 | 290.0 | 230.0 | 11.42 | 9.06 | 2 | TG80 |
| TRB250 | 301.6 | 272.2 | 14.7 | 11.87 | 10.72 | 0.58 | 318.0 | 253.0 | 12.52 | 9.96 | 3 | TG80 |
| TRB280 | 324.0 | 299.0 | 12.5 | 12.76 | 11.77 | 0.49 | 341.0 | 280.0 | 13.43 | 11.02 | 3 | TG100 |
| TRB315 | 356.0 | 331.0 | 12.5 | 14.02 | 13.03 | 0.49 | 370.0 | 305.0 | 14.57 | 12.01 | 3 | TG100/TG120 |
| TRB365 | 406.0 | 374.0 | 16.0 | 15.98 | 14.72 | 0.63 | 426.0 | 346.0 | 16.77 | 13.62 | 3 | TG120/TG125 |
| TRB410 | 457.2 | 425.2 | 16.0 | 18.00 | 16.74 | 0.63 | 473.0 | 397.0 | 18.62 | 15.63 | 3 | TG320 |
| TRB460 | 508.0 | 483.0 | 12.5 | 20.00 | 19.02 | 0.49 | 529.0 | 455.0 | 20.83 | 17.91 | 3 | TG370 |
| TRB510 | 559.0 | 534.0 | 12.5 | 22.01 | 21.02 | 0.49 | 586.0 | 502.0 | 23.07 | 19.76 | 3 | TG450 |
| TRB560 | 609.6 | 584.2 | 12.7 | 24.00 | 23.00 | 0.50 | 633.0 | 558.0 | 24.92 | 21.97 | 3 | TG450 |
| TRB610 | 660.4 | 635.0 | 12.7 | 26.00 | 25.00 | 0.50 | 684.0 | 602.6 | 26.93 | 23.74 | 3 | TG450, TG550 |
| TRB660 | 711.0 | 685.0 | 13.0 | 27.99 | 26.97 | 0.51 | 731.0 | 653.0 | 28.78 | 25.71 | 3 | TG550 |
| TRB710 | 762.0 | 724.0 | 19.0 | 30.00 | 28.50 | 0.75 | 786.0 | 690.0 | 30.94 | 27.17 | 3 | TG550 |
| TRB760 | 813.0 | 788.0 | 12.5 | 32.01 | 31.02 | 0.49 | 841.0 | 754.0 | 33.11 | 29.69 | 3, 4 | TG550 |
| TRB810 | 864.0 | 839.0 | 12.5 | 34.02 | 33.03 | 0.49 | 887.0 | 803.0 | 34.92 | 31.61 | 3, 4 | TG640 |
| TRB860 | 914.4 | 889.0 | 12.7 | 36.00 | 35.00 | 0.50 | 936.4 | 847.0 | 36.85 | 33.35 | 4 | TG640 |
| TRB960 | 1016.0 | 976.0 | 20.0 | 40.00 | 38.43 | 0.79 | 1048.0 | 932.0 | 41.26 | 36.69 | 5 | TG800 |
| TRB1010 | 1066.8 | 1022.4 | 22.2 | 42.00 | 40.25 | 0.87 | 1097.0 | 976.4 | 43.19 | 38.43 | 5 | TG800 |
| TRB1160 | 1219.2 | 1168.4 | 25.4 | 48.00 | 46.00 | 1.00 | 1243.2 | 1122.4 | 48.94 | 44.17 | 6 | TG800 |
| TRB1360 | 1420.0 | 1380.0 | 20.0 | 55.91 | 54.33 | 0.79 | 1460.0 | 1330.0 | 57.48 | 52.36 | 6 | TG900 |
*Other size of TRB system is available upon customer's request.
