CLUSTER HAMMERS
REVERSE CIRCULATION TGM
CLUSTER HAMMERS
REVERSE CIRCULATION TGM
REVERSE CIRCULATION TGM
REVERSE CIRCULATION TGM

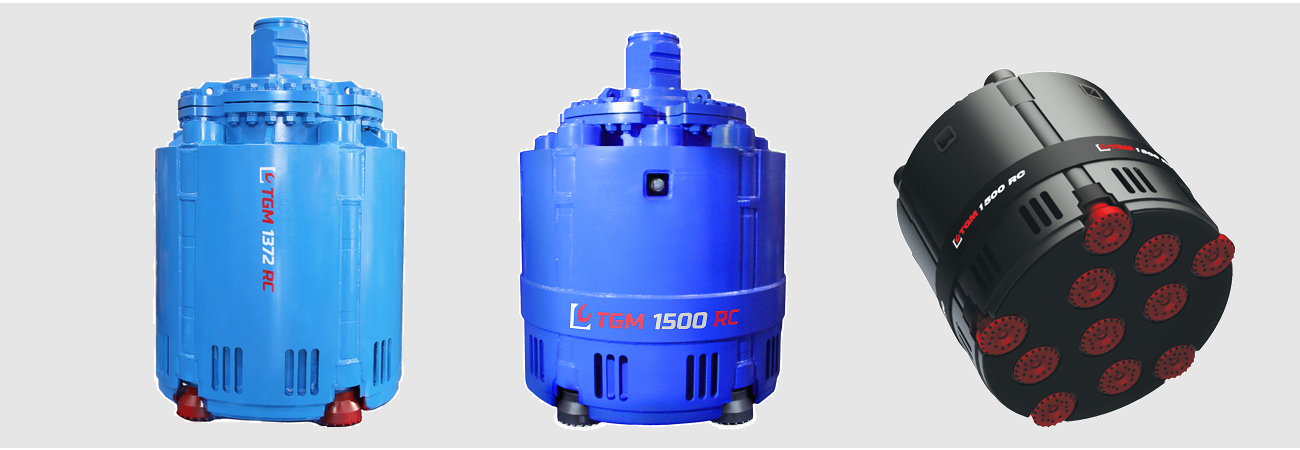

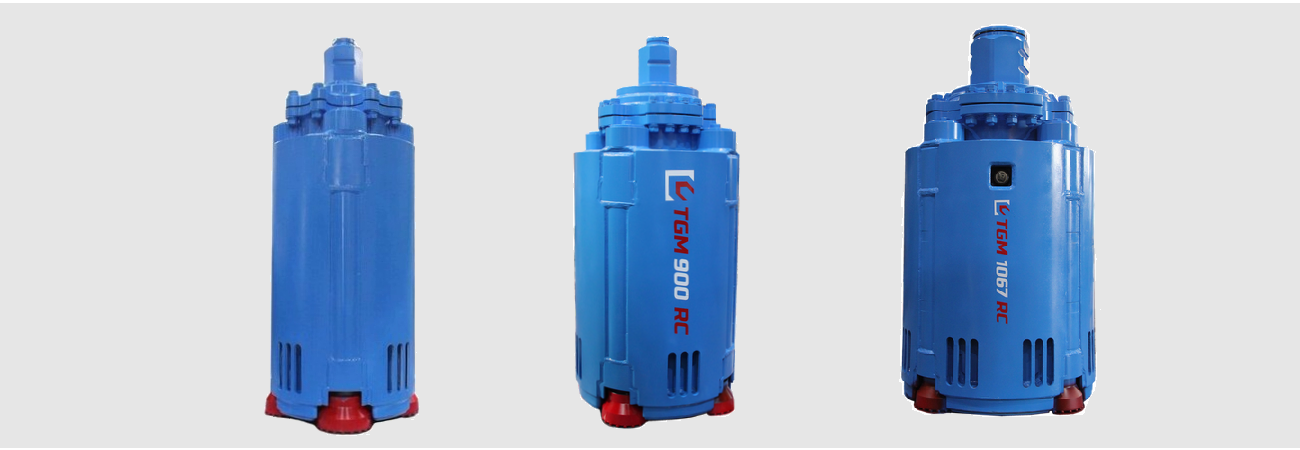

Reverse Circulation TGM hammers are designed specially to provide better performance by efficient removal of cuttings.
REVERSE CIRCULATION TGM Specification
| Model | No. of Hammers | Working Diameter | Total Weight | Air Requirements | |||
| MM | INCH | KG | LBS | SCFM | M³/MIN | ||
| TGM 762RC | 4 | 762 | 30.0 | 2434 | 5366 | 2040 | 57.8 |
| TGM 900RC | 5 | 900 | 35.4 | 3206 | 7068 | 2550 | 72.2 |
| TGM 1500RC | 11 | 1500 | 59.1 | 8149 | 17965 | 5610 | 158.9 |
* COMPOSITION: SPECIALLY DESIGNED TM80 HAMMER AND BIT
* AIR REQUIREMENTS PER HAMMER - 510 CFM@150 PSI OR 695 CFM@200 PSI
* Other size of RC TGM Hammer is available upon customer’s request.
