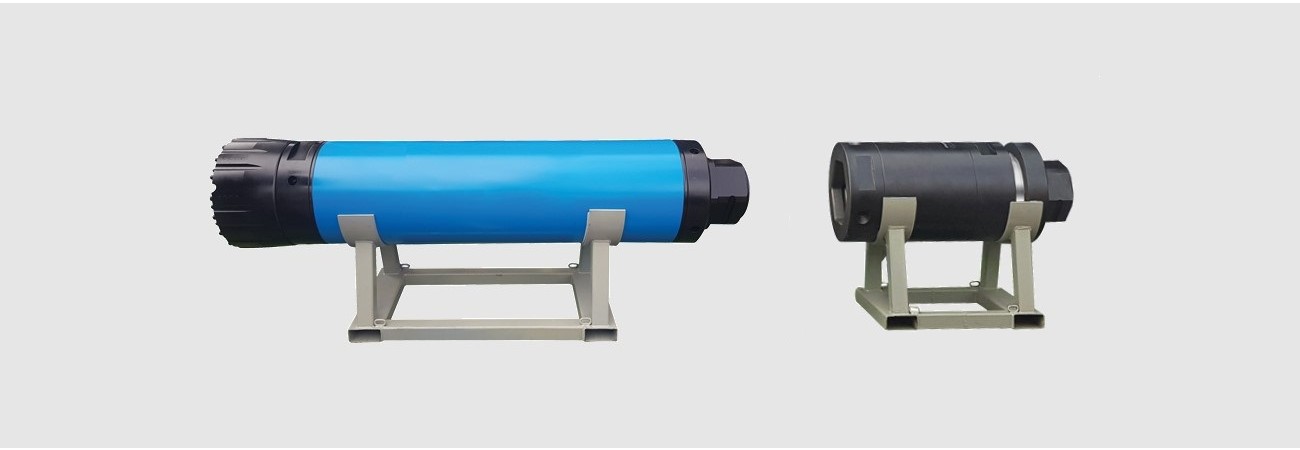

TRC HAMMER
TRC HAMMER
TRC HAMMER
It’s a new version of Reverse Circulation hammer. The cuttings are evacuated to the ground through the inner tube of RC hammer.
TRC hammers lead to productivity growth and cost savings.
TRC HAMMER Specification
| model | TRC40 | TRC50 | ||
|---|---|---|---|---|
| Connection | Metzke 4" Box | Remet 4.5" Box | ||
| Bit Shank | RC40 | RC50 | ||
| General Specifications | Metric | Imperial | Metric | Imperial |
| Recommended bit diameter | 121 - 133 | 4 3/4 - 5 1/4 | 133 - 143 | 5 1/4 - 5 5/8 |
| Outside Diameter | 116 | 4.57 | 121 | 4.76 |
| Length w/o connection & bit | 973.5 | 38.3 | 1078.5 | 42.5 |
| Weight w/o bit | 50.0 | 110.2 | 61.3 | 135.1 |
| Backhead across flats (mm) | 44x95.5 AF | 30 X 116 AF | ||
| Air Consumption | ||||
| 20.7 BAR / 300 PSI (m³/min & cfm) | 18.4 | 650 | 18.7 | 660 |
| 27.6 BAR / 400 PSI (m³/min & cfm) | 22.1 | 780 | 23.5 | 830 |
| 34.5 BAR / 500 PSI (m³/min & cfm) | 25.5 | 900 | 29.2 | 1030 |
* Other size of TRC Hammer is available upon customer’s request.
